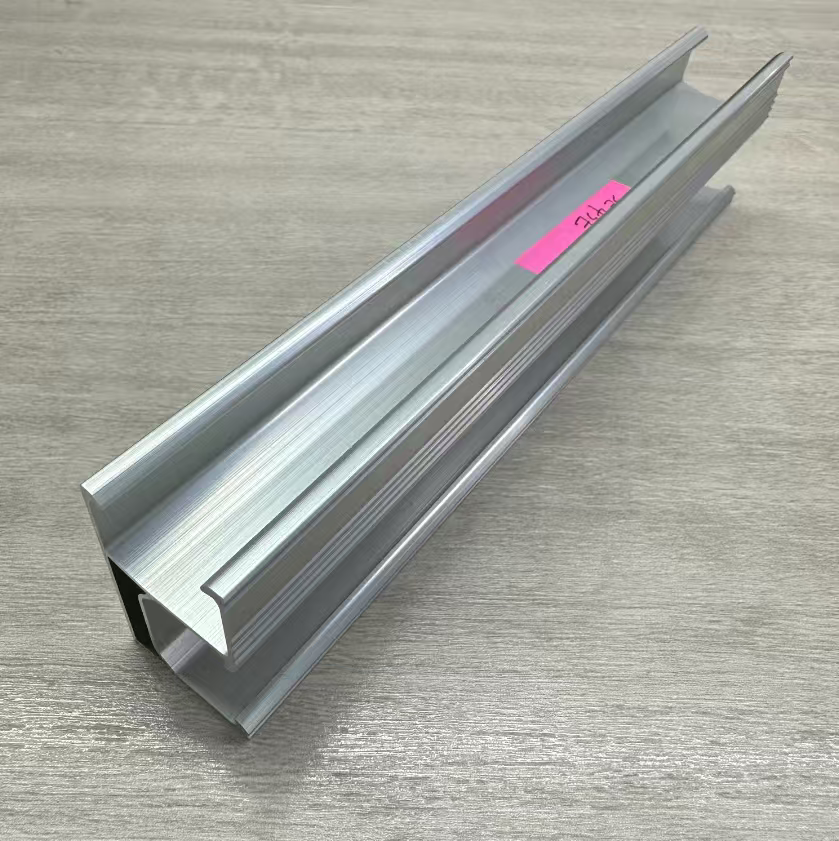

Build an engineered, international-standard support structure for your solar array on metal roofs with this AL6005-T5/T6 Aluminium Solar Mounting Rail.

Designed specifically for Metal Roof applications, this profile supports both framed and frameless solar panels in landscape or portrait orientation at $0^\circ$ tilt angle. Built with top-grade materials, it offers high structural resilience against extreme wind velocities, seismic activity, and heavy snow loads.

Advanced Technical Specifications:

• Materials: Anodized High-Strength Aluminum AL6005-T5/T6 & Stainless Steel SUS304 hardware.

• Profile Dimensions: $26.8\text{ mm}$ (width) $\times 43\text{ mm}$ (height) with optimized clamping channels.

• Available Lengths: Available in multiple standard length variations to fit various project sizes (choose your preferred size from the dropdown menu).

• Wind Load Capacity: Extreme wind speed resistance $\le 60\text{ m/s}$ (over $215\text{ km/h}$).

• Snow Load Capacity: $1.5\text{ kN/m}^2$.

• Seismic Load Rating: Lateral Seismic Factor $K_p = 1$; Seismic Coefficient $Z = 1$; Use Coefficient $I = 1$.

• Panel Compatibility & Layout: Framed & Frameless modules, Portrait or Landscape orientation, $0^\circ$ Tilt Angle.

• International Building & Safety Standards: JIS C 8955:2017, AS/NZS 1170, DIN 1055, ASCE/SEI 7-05, IBC 2009 (International Building Code).
